Industrial-Grade Hot Water Cleaning Powered by Baldor and General Pump Performance

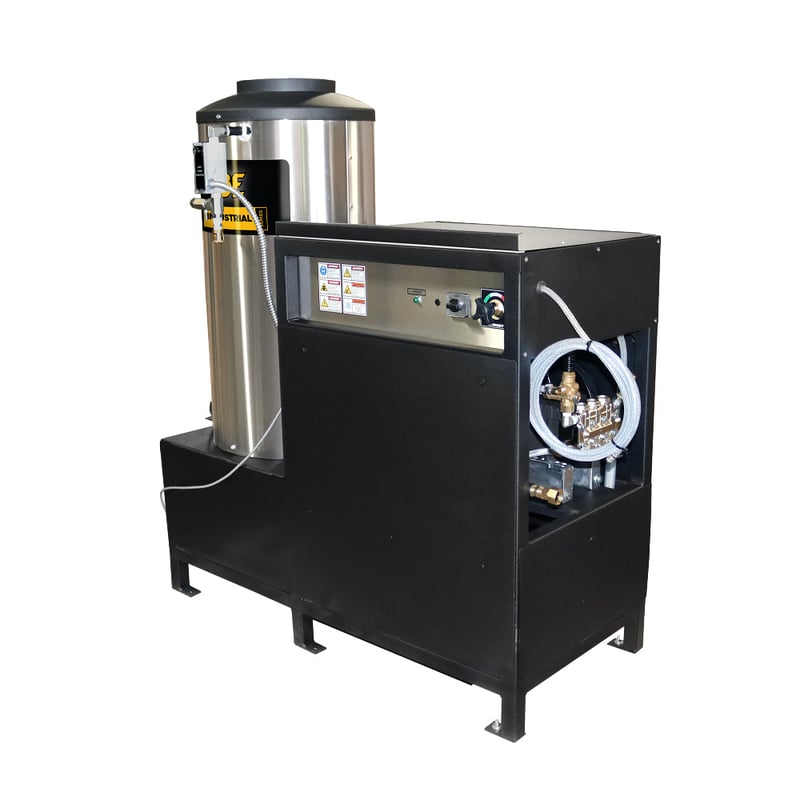

The BE Power Equipment 643HD Hot Water Pressure Washer is engineered for industrial environments where continuous-duty performance, high heat, and dependable power are essential. Delivering 3,000 PSI at 4.0 GPM, this unit provides the ideal balance of pressure, flow, and temperature for breaking down grease, oil, grime, and buildup in demanding cleaning applications.
Powered by a 7.5 HP Baldor single-phase electric motor operating on 208V–230V, the 643HD is built for reliability and long service life. The motor runs at 1,750 RPM, pairing with a belt-driven General TSS1511 triplex pump to reduce heat, vibration, and component wear while delivering smooth, consistent pressure. A high-output electronic-ignition burner system, compatible with natural gas or LP, produces up to 385,000 BTU, heating water to a maximum of 93°C / 200°F for superior industrial cleaning performance.
Designed for stationary industrial installations, the 643HD delivers professional hot water cleaning power with advanced controls that protect components and simplify operation.
Built for Industrial Hot Water Applications
The 643HD is purpose-built for facilities that require reliable hot water pressure washing, including:
Manufacturing and production facilities
Fleet and equipment maintenance shops
Food processing and sanitation environments
Industrial wash bays
Heavy equipment and parts cleaning
Hot water significantly improves cleaning efficiency by accelerating grease breakdown, reducing cleaning time, and minimizing chemical usage.
Features
Baldor Electric Motor
At the heart of the 643HD is a commercial-duty Baldor electric motor, engineered for industrial use.
Motor features include:
7.5 HP output
Single-phase operation
208V–230V (to be specified)
37–36 amp draw
1,750 RPM low-speed design
Quiet, emission-free electric operation
This motor provides dependable power for extended run times in industrial settings.
General Triplex Pump with Belt Drive
The General TSS1511 triplex pump is belt-driven for reduced stress and improved durability.
Pump features include:
Forged brass manifold
Solid ceramic plungers
Reinforced pump body
External unloader for improved cooling and serviceability
Adjustable high-pressure chemical metering valve
The belt drive system lowers pump RPM, minimizes heat transfer, and extends pump life under continuous use.
High-Output Gas-Fired Hot Water System
The hot water system is engineered for consistent, high-temperature operation.
Hot water system features include:
Electronic ignition burner system
Compatible with natural gas or LP
385,000 BTU output
147’ x 1/2” Schedule 80 cold-rolled steel heating coil
Maximum water temperature of 93°C / 200°F
Adjustable thermostat
Flow / pressure switch
Pressure relief valve
Rotary cam burner switch
This system delivers rapid heat recovery and stable temperature control during extended cleaning cycles.
Advanced Controls and Protection
The 643HD includes industrial safety and monitoring features designed to protect equipment and improve usability:
Time-delay shutdown for controlled cool-down
Hour meter for accurate maintenance tracking
External unloader for consistent pressure regulation
These features help extend component life while simplifying daily operation.
Accessories Included
The 643HD comes equipped with professional-grade accessories:
50 ft. twin-wire braided high-pressure hose
Commercial insulated spray gun
48” insulated spray wand with quick-connect fittings
2 quick-connect spray nozzles – 15° and 25°
All accessories are rated
