Built to Last. Designed to Handle the Hardest Tasks.

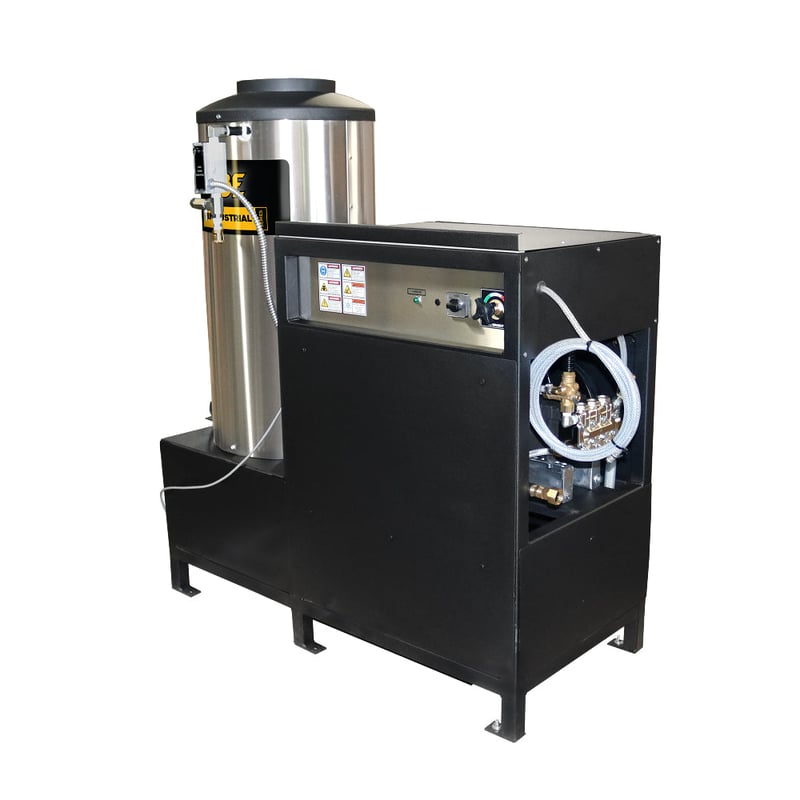

The BE Power Equipment 643HD-3 Hot Water Pressure Washer is engineered for demanding industrial environments where consistent heat, reliable flow, and long-term durability are critical. Delivering 3,000 PSI at 4.0 GPM, this unit provides the ideal balance of pressure, volume, and temperature to cut through grease, oil, grime, and heavy buildup with speed and efficiency.
Powered by a 7.5 HP Baldor three-phase electric motor, operating on 208V–230V (to be specified), the 643HD-3 is built for continuous-duty performance. Running at 1,750 RPM, the motor is paired with a belt-driven General TSS1511 triplex pump, reducing heat, vibration, and mechanical stress while delivering smooth, consistent pressure. This belt-drive configuration significantly extends pump life in high-demand industrial applications.
A high-output electronic-ignition burner system, compatible with natural gas or LP, produces up to 385,000 BTU, heating water to a maximum of 93°C / 200°F for superior hot water cleaning performance.
Built for Industrial Hot Water Cleaning
The 643HD-3 is purpose-built for stationary industrial installations where hot water pressure washing is essential, including:
Manufacturing and production facilities
Fleet and heavy equipment maintenance bays
Food processing and sanitation operations
Industrial wash stations
Parts cleaning and degreasing applications
Hot water dramatically improves cleaning efficiency by breaking down grease and oil faster, reducing chemical usage, and cutting overall cleaning time.
Features
Baldor Three-Phase Electric Motor
At the core of the 643HD-3 is a commercial-duty Baldor electric motor, designed for reliability and long service life in industrial environments.
Motor features include:
7.5 HP output
Three-phase operation
208V–230V (to be specified)
26–25 amp draw
1,750 RPM low-speed design
Quiet, emission-free electric operation
This motor delivers dependable power for extended run times in demanding applications.
General Triplex Pump with Belt Drive
The General TSS1511 triplex pump is belt-driven to maximize durability and performance.
Pump features include:
Forged brass manifold
Solid ceramic plungers
Reinforced pump body
External unloader for improved cooling and serviceability
Adjustable high-pressure chemical metering valve
The belt-drive system lowers pump RPM, minimizes heat transfer, and extends component life under continuous use.
High-Output Gas-Fired Hot Water System
The hot water system is engineered for consistent, high-temperature output in industrial environments.
Hot water system features include:
Electronic ignition burner system
Compatible with natural gas or LP
385,000 BTU output
147’ x 1/2” Schedule 80 cold-rolled steel heating coil
Maximum water temperature of 93°C / 200°F
Adjustable thermostat
Flow / pressure switch
Pressure relief valve
Rotary cam burner switch
This system provides fast heat recovery and stable temperature control during long cleaning cycles.
Advanced Controls and Protection
The 643HD-3 includes industrial-grade safety and monitoring features designed to protect equipment and simplify operation:
Time-delay shutdown for controlled cool-down
Hour meter for accurate maintenance tracking
External unloader for consistent pressure regulation
These features help extend component life while improving ease of use.
Accessories Included
The 643HD-3 comes equipped with professional-grade accessories:
50 ft. twin-wire braided high-pressure hose
Commercial insulated spray gun
48” insulated spray wand with quick-connect fittings
2 quick-connect spray nozzles – 15° and 2
