Industrial Strength Cleaning. Built to Endure. Designed to Perform.

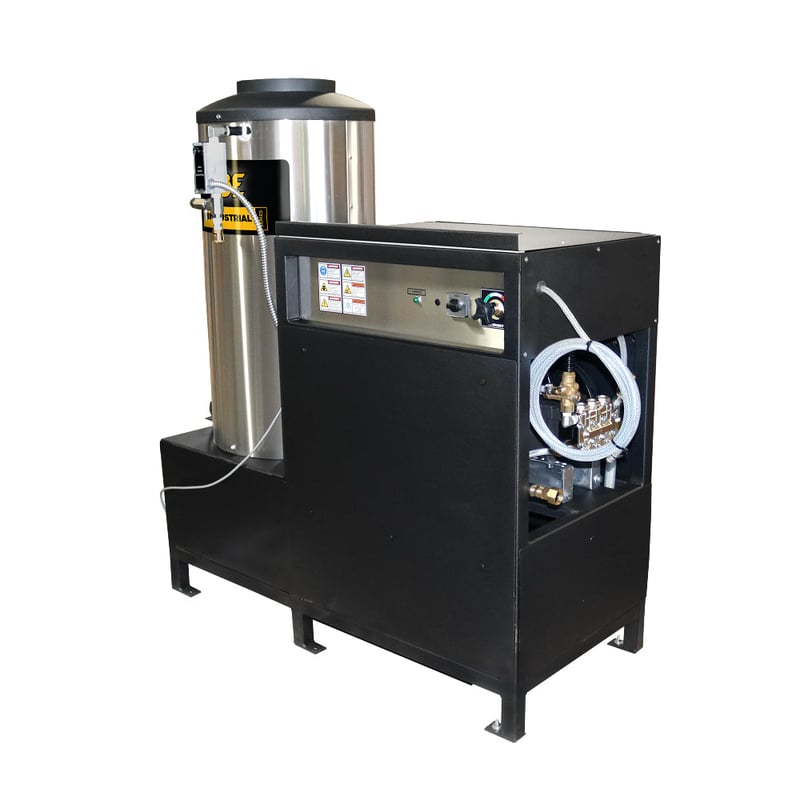

The BE Power Equipment 643HD-3-460 Hot Water Pressure Washer is engineered for high-demand industrial environments where consistent heat, stable flow, and long-term durability are essential. Delivering 3,000 PSI at 4.0 GPM, this unit provides the ideal balance of pressure, volume, and temperature to break down grease, oil, grime, and heavy buildup efficiently.
Powered by a 7.5 HP Baldor three-phase electric motor, operating on 460V, the 643HD-3-460 is built for continuous-duty industrial operation. Running at 1,750 RPM, the motor is paired with a belt-driven General TSS1511 triplex pump, significantly reducing heat, vibration, and mechanical stress. This belt-drive configuration extends pump life while maintaining smooth, consistent pressure during extended cleaning cycles.
A high-output electronic-ignition burner system, compatible with natural gas or LP, delivers up to 385,000 BTU, heating water to a maximum of 93°C / 200°F for superior hot water cleaning performance in the most demanding applications.
Built for Industrial Hot Water Cleaning
The 643HD-3-460 is designed for stationary industrial installations where reliable hot water pressure washing is critical, including:
Manufacturing and production facilities
Fleet and heavy equipment maintenance bays
Food processing and sanitation operations
Industrial wash stations
Parts cleaning and degreasing applications
Hot water cleaning dramatically improves efficiency by breaking down grease and oil faster, reducing chemical usage, and minimizing overall cleaning time.
Features
Baldor Three-Phase Electric Motor
At the core of the 643HD-3-460 is a commercial-duty Baldor electric motor, engineered for reliability and long service life.
Motor features include:
7.5 HP output
Three-phase operation
460V
16 amp draw
1,750 RPM low-speed design
Quiet, emission-free electric operation
This motor delivers consistent power for continuous industrial use.
General Triplex Pump with Belt Drive
The General TSS1511 triplex pump is belt-driven to maximize durability and performance.
Pump features include:
Forged brass manifold
Solid ceramic plungers
Reinforced pump body
External unloader for improved cooling and serviceability
Adjustable high-pressure chemical metering valve
The belt-drive system lowers operating RPM, reduces heat transfer, and extends component life under heavy workloads.
High-Output Gas-Fired Hot Water System
The integrated hot water system is built for consistent, high-temperature output in industrial environments.
Hot water system features include:
Electronic ignition burner system
Compatible with natural gas or LP
385,000 BTU output
147’ x 1/2” Schedule 80 cold-rolled steel heating coil
Maximum water temperature of 93°C / 200°F
Adjustable thermostat
Flow switch
Pressure relief valve
Rotary cam / rocker burner switch
This system delivers fast heat recovery and stable temperature control during extended operation.
Advanced Controls and Protection
Designed for safety, reliability, and ease of maintenance, the 643HD-3-460 includes:
Time-delay shutdown for controlled cool-down
Hour meter for accurate maintenance tracking
External unloader for consistent pressure regulation
These features help protect critical components while simplifying daily operation.
Accessories Included
The 643HD-3-460 comes equipped with professional-grade accessories:
50 ft. twin-wire braided high-pressure hose
Commercial insulated spray gun
48” insulated spray wand with quick-connect fittings
2 quick-connect spray nozzles – 15° and 25°
