Engineered for Longevity. Powered by Heat. Built for the Toughest Jobs.

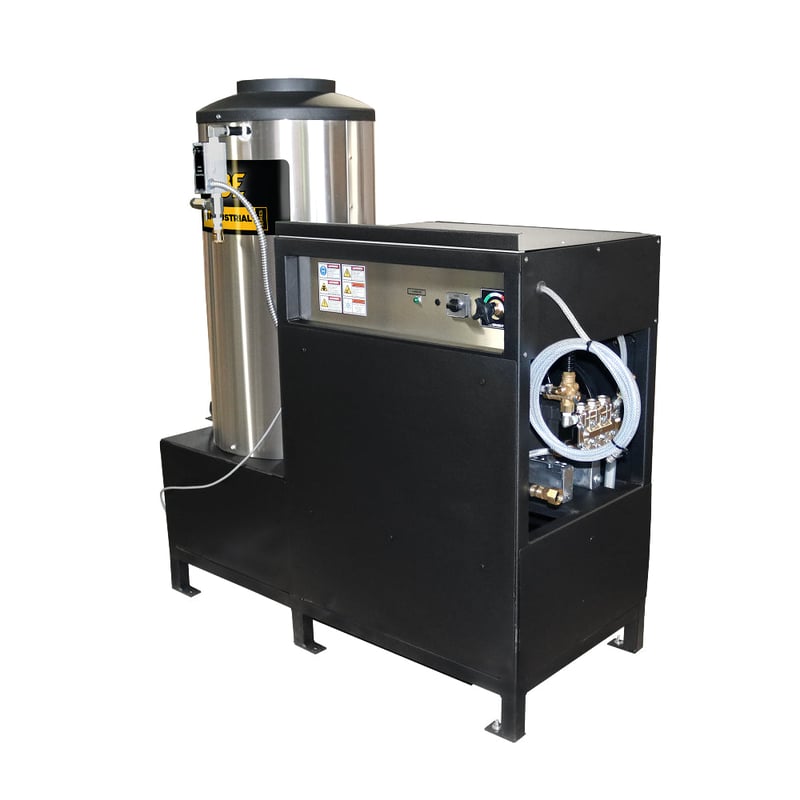

The BE Power Equipment 67HD Hot Water Pressure Washer is engineered for demanding industrial environments where high flow, sustained heat, and continuous-duty performance are critical. Delivering 3,000 PSI at 5.0 GPM, this unit provides the ideal combination of pressure, volume, and temperature to remove grease, oil, heavy buildup, and industrial contaminants efficiently.
Powered by a 10 HP Baldor electric motor, operating on 208V–230V single-phase power, the 67HD is designed for reliable, long-term industrial operation. Running at 1,750 RPM, the motor drives a belt-driven General TS2021 triplex pump, significantly reducing heat, vibration, and mechanical stress while extending pump life during extended cleaning cycles.
A high-capacity electronic-ignition burner system, compatible with natural gas or LP, delivers up to 440,000 BTU, heating water to a maximum of 93°C / 200°F. This high-output hot water system dramatically improves cleaning efficiency while reducing chemical usage and overall labor time.
Built for Industrial Hot Water Cleaning
The 67HD is designed for stationary industrial installations that demand reliable hot water pressure washing, including:
Manufacturing and processing facilities
Fleet and heavy equipment maintenance bays
Food processing and sanitation environments
Industrial wash stations
Parts cleaning and degreasing operations
Hot water cleaning accelerates grease breakdown, improves sanitation, and shortens cleaning cycles—making the 67HD ideal for high-volume industrial use.
Features
Baldor Industrial Electric Motor
At the core of the 67HD is a commercial-duty Baldor electric motor, engineered for durability and continuous operation.
Motor specifications include:
10 HP output
Single-phase operation
208V–230V (to be specified)
47–46 amp draw
1,750 RPM low-speed design
Quiet, emission-free electric operation
This motor provides consistent power for extended-duty industrial cleaning applications.
Belt-Driven General Triplex Pump
The General TS2021 triplex pump is belt-driven to maximize durability and performance under heavy workloads.
Pump features include:
Forged brass manifold
Solid ceramic plungers
Reinforced pump body
External unloader for improved cooling and serviceability
Adjustable high-pressure chemical metering valve
The belt-drive system lowers operating RPM, minimizes vibration, and extends component life.
High-Output Gas-Fired Hot Water System
The integrated hot water system is designed for high-temperature, continuous industrial operation.
Hot water system features include:
Electronic ignition burner system
Compatible with natural gas or LP
440,000 BTU output
230’ x 1/2” Schedule 80 cold-rolled steel heating coil
Maximum water temperature of 93°C / 200°F
Adjustable thermostat
Flow switch
Pressure relief valve
Rotary cam burner switch
This system delivers fast heat recovery and consistent temperature control throughout long cleaning cycles.
Advanced Controls and Protection
The 67HD includes key operational and safety features to protect equipment and simplify maintenance:
Time-delay shutdown for controlled cool-down
Hour meter for accurate service tracking
External unloader for stable pressure regulation
These features help extend component life and ensure safe, reliable operation.
Accessories Included
The 67HD comes equipped with professional-grade accessories:
50 ft. twin-wire braided high-pressure hose
Commercial insulated spray gun
48” insulated spray wand with quick-connect fittings
2 quick-connect spray nozzles – 15° and 25°
All accesso
