Built to Last. Designed to Handle the Hardest Tasks.

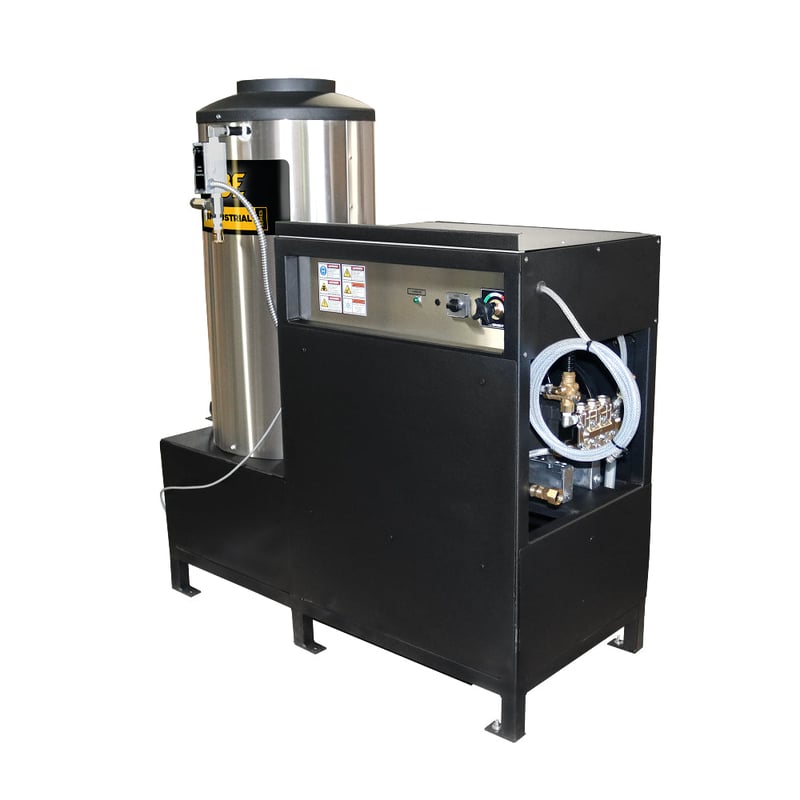

The BE Power Equipment 67HD-3 Hot Water Pressure Washer is engineered for demanding industrial environments where high flow, sustained heat, and continuous-duty reliability are non-negotiable. Delivering 3,000 PSI at 5.0 GPM, this unit provides the ideal balance of pressure, volume, and temperature to remove grease, oil, sludge, and heavy industrial buildup efficiently.
Powered by a 10 HP Baldor electric motor, the 67HD-3 operates on 208V–230V three-phase power and runs at a low 1,750 RPM, ensuring smooth operation, reduced electrical load, and long service life. Power is transferred through a belt-drive system to a commercial-grade General Pump TS2021 triplex pump, significantly reducing vibration, heat buildup, and mechanical stress during extended cleaning cycles.
A high-output electronic-ignition burner system, compatible with natural gas or LP, delivers up to 440,000 BTU, heating water to a maximum of 93°C / 200°F. This high-capacity hot water system dramatically improves cleaning efficiency while reducing chemical usage and labor time—ideal for industrial wash bays and production environments.
Built for Industrial Hot Water Cleaning
The 67HD-3 is designed for stationary industrial installations requiring dependable hot water pressure washing, including:
Manufacturing and processing facilities
Fleet and heavy equipment maintenance bays
Food processing and sanitation environments
Industrial wash stations
Parts cleaning and degreasing operations
Hot water cleaning accelerates grease breakdown, improves sanitation, and shortens cleaning cycles—making the 67HD-3 a reliable solution for high-volume industrial use.
Features
Baldor Industrial Three-Phase Electric Motor
At the core of the 67HD-3 is a commercial-duty Baldor electric motor, engineered for continuous operation in industrial settings.
Motor specifications include:
10 HP output
Three-phase operation
208V–230V (to be specified)
35–34 amp draw
1,750 RPM low-speed design
Quiet, emission-free electric operation
This motor delivers stable power for extended-duty industrial cleaning applications.
Belt-Driven General Triplex Pump
The General TS2021 triplex pump is belt-driven to maximize durability and long-term performance.
Pump features include:
Forged brass manifold
Solid ceramic plungers
Reinforced pump body
External unloader for improved cooling and serviceability
Adjustable high-pressure chemical metering valve
The belt-drive configuration lowers operating RPM, reduces vibration, and extends pump life under continuous use.
High-Output Gas-Fired Hot Water System
The integrated hot water system is designed for sustained, high-temperature industrial operation.
Hot water system features include:
Electronic ignition burner system
Compatible with natural gas or LP
440,000 BTU output
230’ x 1/2” Schedule 80 cold-rolled steel heating coil
Maximum water temperature of 93°C / 200°F
Adjustable thermostat
Flow switch
Pressure relief valve
Rotary cam burner switch
This system delivers fast heat recovery and consistent temperature control during long cleaning cycles.
Advanced Controls and Protection
The 67HD-3 includes key operational and safety features to protect equipment and simplify maintenance:
Time-delay shutdown for controlled cool-down
Hour meter for accurate service tracking
External unloader for stable pressure regulation
These features help extend component life and ensure safe, dependable operation.
Accessories Included
The 67HD-3 comes equipped with professional-grade accessories:
50 ft. twin-wire braided high-pressure hose
Commercial insulated spray gun
48” insulated spray wand
