For Those Who Occasionally Need Industrial Heat

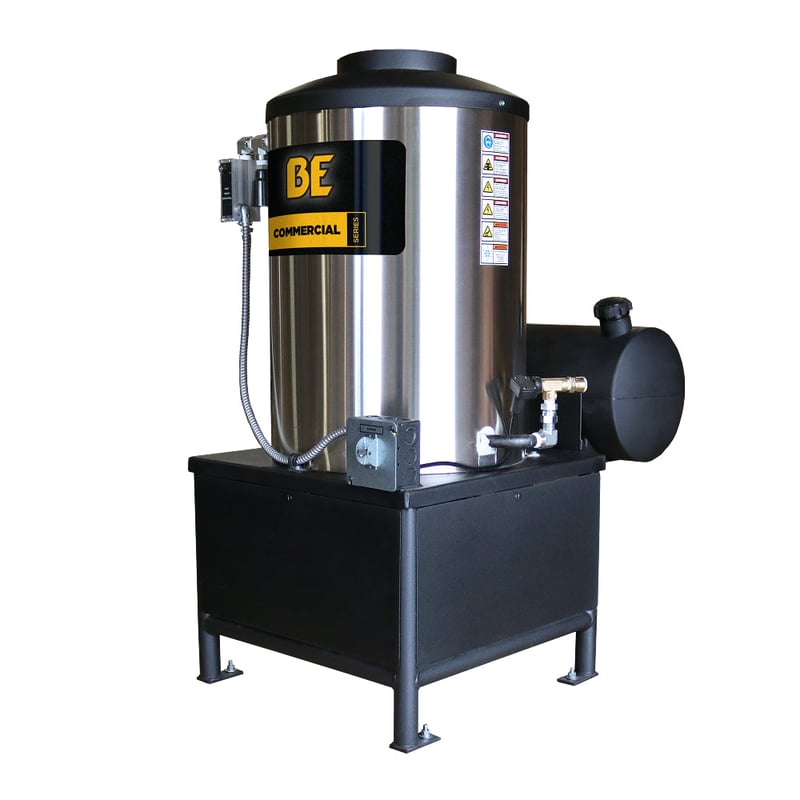

The BE Power Equipment 96012V Vertical Electric-Ignition Diesel-Fired Hot Box is designed for professionals who need hot water cleaning power without investing in a full hot water pressure washer. This standalone hot box connects directly to a cold water pressure washer, instantly converting it into a hot water pressure washing system capable of tackling grease, oil, grime, and heavy buildup with ease.
Engineered for mobile and stationary applications, the 96012V operates on 12VDC power, making it ideal for truck-mounted, trailer-mounted, and remote jobsite setups. With a powerful 550,000 BTU diesel-fired burner, this hot box heats water up to 93°C / 200°F, dramatically improving cleaning efficiency while reducing chemical use and labor time.
Built into a rugged, powder-coated steel frame, the 96012V is designed to withstand demanding work environments while delivering reliable, on-demand hot water whenever the job requires it.
Built to Upgrade Cold Water Pressure Washers
The 96012V hot box is designed to integrate seamlessly with existing pressure washing equipment and is ideal for applications such as:
Fleet and heavy equipment cleaning
Oil, grease, and hydraulic fluid removal
Agricultural and farm equipment washing
Industrial maintenance and wash bays
Construction and transportation cleanup
Hot water significantly accelerates grease and oil breakdown, allowing operators to clean faster, more effectively, and with less detergent.
Features
High-Output Diesel-Fired Heating System
At the core of the 96012V is a diesel-fired burner system with electronic ignition, delivering exceptional heating performance for demanding cleaning applications.
Heating system features include:
550,000 BTU output
Maximum water temperature of 93°C / 200°F
12VDC operation
Adjustable thermostat for precise temperature control
Toggle burner on/off switch
Inline fuel filter for system protection
This powerful heating system ensures fast temperature recovery and consistent hot water delivery.
Heavy-Duty Heating Coil Assembly
The hot box is equipped with a 147’ x 1/2” Schedule 80 cold-rolled steel heating coil, engineered for long service life and efficient heat transfer.
Schedule 80 construction resists pressure and thermal stress
Stainless steel coil wrap provides added protection and durability
Designed for continuous hot water operation
This coil design delivers reliable heating performance even under extended use.
Flow-Activated Safety and Control System
The 96012V includes multiple safety and operational controls to protect both the operator and connected equipment:
Flow switch monitors water movement and burner operation
Rupture disk for pressure protection
Adjustable thermostat for controlled heating
Toggle burner switch for manual control
These systems ensure safe, dependable operation during hot water pressure washing.
Large Diesel Fuel Capacity
A 7-gallon (26.5 L) black poly diesel fuel tank provides extended run time, reducing downtime and allowing operators to work longer between refueling stops.
Rugged Industrial Frame Design
The hot box is housed in a powder-coated steel frame, providing excellent durability and stability in harsh jobsite conditions. The vertical design minimizes footprint while maintaining service accessibility.
This makes the 96012V well suited for mobile pressure washing rigs and fixed installations alike.
Product Details
Model: 96012V
Water Flow Compatibility: 4.0–5.0 GPM
Power Supply: 12VDC
Battery Requirement: Group 24 deep cycle battery (not included)
Burner: SDC diesel burner with electronic ignitor
BTU Output: 550,000
Maximum Temperature: 93°C / 200°F
Heating Coil: 147’ x 1/2” Schedule 80 cold-rolled steel
Fuel Tank: 26.5 L / 7 gal black poly
Thermostat: Adjustable
Flow Switch: Yes
Rupture Disk: Yes
High Limit Switch: No
