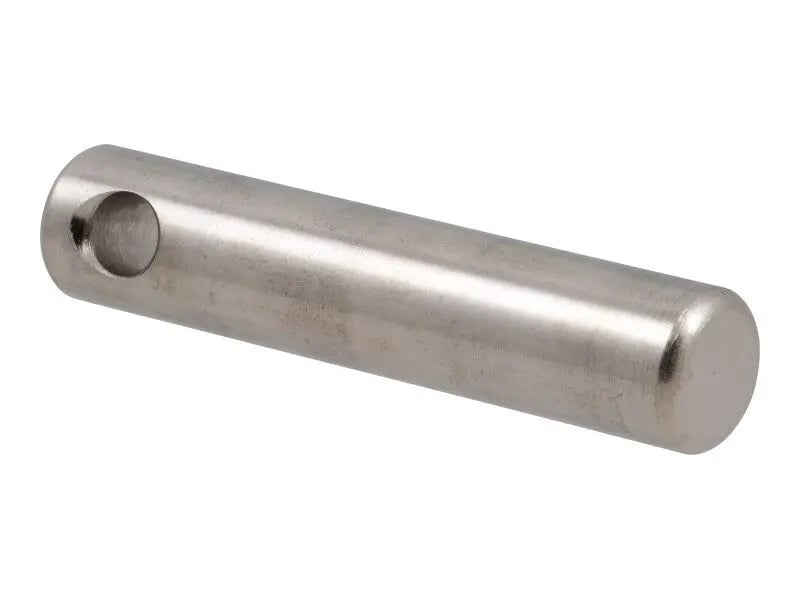

JLG 3423304 Pin Pivot — OEM replacement part
Watch Video
JLG
OEM Part

JLG 3423304 — Pin Pivot — OEM Replacement

Part # 3423304 • MPN 3423304
Available to order
$2071
Choose your location
Delivery Available to order
Get it by Wednesday, July 1
Free delivery on orders $100+*
Check fit for your equipment
Confirm this part matches your model before you buy.
Quantity:

Product Details

Part Number 3423304
MPN 3423304
Brand JLG
Condition New
Category Castings / Machinings
Type Machined bar stock
Ships Nationwide
Weight 0.4 lbs
Dimensions 3.8" × 1.1" × 1.1"
Warranty 1 Year
Fulfilled by Everglades Equipment Group
JLG Parts Pivot Pin for use on JLG Boom and Scissor MEWP(Mobile Elevated Work Platform) Machines. The Pin is use in the steering assembly and connects the Steering Cylinder to the Tie Rod, and the Tie Rod to the Spindle Assembly. This pin has a .750" Diameter and is 3.625" Long. Model Use: 400 Series and 500 Series Boom Lifts, and RT Series Scissor Lifts. Please ensure proper model and serial range before parts purchase.
  • genuine JLG OEM part
  • engineered for aerial work platforms and telehandlers
  • direct fit replacement
  • Shipping dimensions: 3.8" × 1.1" × 1.1"
