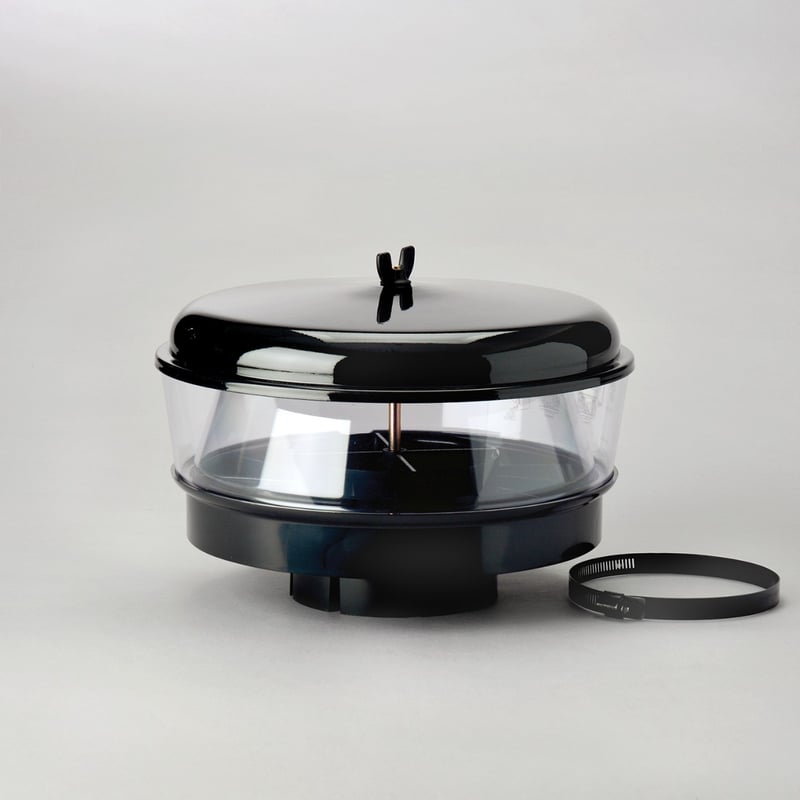

JLG H002043 — Donaldson H002043 Pre-Cleaner

Donaldson's Full View Pre-Cleaner, with a height of 7.68 inches, maximum body diameter of 12.06 inches, and outlet inside diameter of 5.03 inches, is a reliable solution to extend primary filter life. The efficient design, with an efficiency of 0.75 per ISO 5011 and SAE J726 standards, uses centrifugal force to separate up to 75% of incoming dust, ensuring optimal engine air intake. The cost-effective and easy-to-use Full-View plastic bowl allows operators to easily monitor service needs, complemented by one-bolt cover retention for hassle-free servicing. The pre-cleaner provides a rated flow HR of 20.9 m³/min (738 cfm) and LR and HR restrictions of 25 mm H2O (0.98 inch H2O) and 76 mm H2O (2.99 inch H2O), respectively.
